Product details

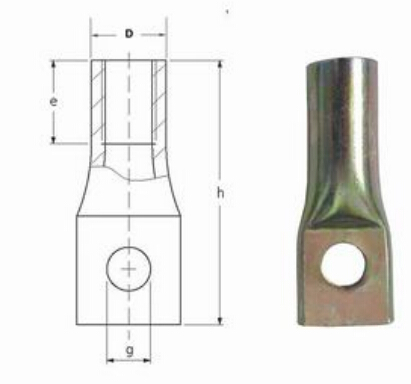

The lifting insert requires a reinforcement tail fitting to the socket to allow the forces to be transferred
into the concrete. A thick walled lifting insert that is designed for lifting.
| Code | Size | D mm | e mm | h mm | g mm | SWL kg |
| JM12060 | M12x60 | 15 | 22 | 60 | 10 | 500 |
| JM12085 | M12x85 | 15 | 22 | 85 | 10 | 500 |
| JM16075 | M16x75 | 21 | 27 | 75 | 13 | 1200 |
| JM2120 | M20x120 | 27 | 35 | 120 | 15 | 2000 |
